Can’t figure out what the best electrode holder is?
Well, if your answer is YES, then a welding electrode holder (also called a welding stinger) is the right accessory for you.
In fact, it’s the smartest way to aid in your welding tasks. Using this welding accessory is a great way to hold the electrodes correctly. It holds the electrodes in steady positions during welding
We’ve done all the work for you! We’ve shortlisted the best three options available today.
Put an end to your endless search!
Ready? Let’s get started.
3 Best Electrode Holders-Quick Comparison Chart
In a hurry? Let’s jump into the quick comparison chart.
What is a Welding Electrode Holder?
In simple terms, a welding electrode holder is a clamping tool used for holding the electrode securely during welding to control the arc. It’s also called STINGER. It’s an insulated hollow handle through which the welding cable attaches.
This tool comes in different sizes and shapes to accommodate different diameters of electrodes. They also vary in holding methods- clamp-style and screw style.
The spring tensions, release lever sizes and jaw grooving designs also make differences in their performances.
However, each holder is designed explicitly within a range of welding current and electrode diameters.
For welding with a machine having a higher amp rating, you’ll require a larger holder than that you may need for welding with a lower amp machine.
If you use a small holder for welding a larger-amp machine, the holder will overheat.
Two types of welding rod holders or stingers are available- non-insulated and insulated.
The non-insulated stingers are prone to short-circuiting if strike or touch the workpiece during welding. So, this type of weld rod holder is not recommended to use.
On the other hand, insulated stringers are safe to use on the job site.
Best Welding Electrode Holder Buying Guide- 3 Factors to Consider
So, thinking about buying a welding stinger?
If you do a bit of research, you’ll notice that there are hundreds of options out there and more emerging every year. So, how do choose the right one to get the job done?
You should consider some features to evaluate which one is perfect for your project.
Without further ado, let’s look at the main attributes that you must focus on before making a purchase.
Amps capabilities/ Capacity of the holder
This is one of the most crucial factors you should have in mind. This tool comes with a specific capacity. It indicates the number of amps the electrode holder can withstand when you put through it while you’re welding.
The amp rating may vary from 200 to 500 amps. However, using the weld stinger with the right capacity will allow you to get the job done smoothly and safely.
Which amp rating is right for you is entirely depends on your work, and the type of electrode you’ll need for your welding.
So, before choosing a model, check out its capacity, which is usually written on the package or marked on the body of the tool.
Stinger Style/ Design
When it comes to choosing the right style, you’ve two options- the clamp system and the screw system.
The clamp system stinger simply holds onto the electrode with powerful jaws. This design lets you unclamp and change the electrodes faster for removing or replacing.
On the other hand, the screw system stinger requires you to screw in a set screw to hold the electrode in position.
On the negative, the system requires a little more time to screw up or remove an electrode. On the positive, it holds the item more firmly and in a more secure way to keep the electrode in position.
Choose the style that will ideally suit your preference.
User comfort is of absolute importance when deciding which model to buy. The model that you select should have an insulated and ergonomic grip.
The insulation will make it safe to use, whereas the ergonomic design will make it easier to hold. It’ll also reduce strain and fatigue and allow you to work for a long time.
The weight of the stinger makes a big difference in user comfort. A lightweight model will reduce user fatigue if you need to work using it for several hours.
3 Best Electrode Holder Reviews- In-depth Reviews
Definitely, there are too many electrode holder brands in the market. So, choosing the best one isn’t a straightforward process as you may think.
Here are some of the top 3 best welding stingers for you.
- Amperage: 0 – 350
- Electrode Capacity: 5 MIL / 3/16″
- Cable Capacity: 1/0 ga
- Weight: 12 ounces
- Dimensions: 10 x 4 x 1 inches
- Ergonomic handle design
- Molded thermoset insulating cover
- Made In the USA
Let’s start with the most heavy-duty welding electrode holder on the market. It’s one of the most expensive stingers on this entire list.
You’re probably wondering if this welding essential is really worthy!
In fact, Stinger STV002 is an authentic piece of equipment made in the USA. It’s all made from high quality machined brass and steel. You can rest assured that this insulated electrode holder will hold up quite well and give you many years of great service.
But that’s not even the best part.
STV002 securely holds the electrode. The spring is strong and it holds any size electrode extremely well. You can bend the electrode around at any angle without it popping out.
This model comes with an ergonomic rubber handle. It’s by far the most comfortable grip. Additionally, the Molded Thermoset insulating cover meets the requirements of your welding tasks.
- Strong clamping power
- Compact and lightweight
- Very simple to install
- Easy to use
- Ergonomic and Comfortable
- The rubber coating on the end of the opening lever tends to wear off quickly and arcs out everywhere
Absolutely, Stv002 is one of the best stingers you can buy in 2021. It’s excellent for pipeline welding. Definitely worth the money.
- Amperage: 300
- Electrode Capacity: 1/4~7/8 inch
- Material: Highly conductive copper tongs
- Weight: 1.1 pounds
- Dimensions: 10.7 x 3.4 x 1.6 inches
- Used # 1 AWG Gauge Cable
- Fiberglass body
- Copper heavy duty jaw
- Non-slip insulated clamping jaws
- American design

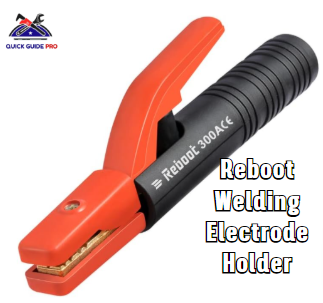

The Reboot 300AMP is exactly what you need for holding the various kinds of Stick Welding Electrodes. It’s suitable to use with MMA arc welders 200 300 amp. Of course, the spring is strong enough to hold the rods very securely.
It’s both lightweight and durable. Thanks to its high-quality brass material construction with an insulated handle.
Why will you love it?
The special design is easy for cable connection. Moreover, an Allen wrench and cable connection ferrule to ensure efficient connection.
It’s also nice to know that this stick welding stinger comes with 1 year after-sales customers’ service guarantee.
Still not convinced?
Well, Screw type 400A holder and 500AMP Heavy-Duty Jaw Holding Plier Electrode Clamp are also available from this brand to meet your need.
- Excellent workmanship
- Fully insulated and protected springs
- Easy to assemble
- Very durable
- Compact to store/carry
- No instructions included
- Handling this tool takes a bit of time getting used to
All in all, if you’re looking for a small and good quality stick welding stinger, this Plier Electrode Clamp is the one you should buy.
- Amperage: 400
- Weight: 13.8 ounces
- Dimensions: 8.5 x 2.7 x 1.5 inches
- Fiberglass jaws and handles
- Comfortable grip
Get your welding jobs done easier, safer and at a crazy low price with this best twist electrode holder!

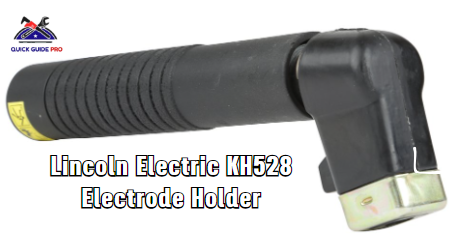

Twistlock electrode holders are popular due to their ability to clamp onto electrodes with screw down the action. This KH528 stinger is no different.
KH528 is heavy-duty and of professional quality. It holds the rod firmly. It’s rated for up to 400 amps and features copper tongs for high conductivity.
Lincoln Electric KH528 Electrode Holder helps you insulate yourself from your work. It’s heat resistant and insulated for safety. That means it won’t get hot even after a long time of use.
Undoubtedly, it’s a huge plus point to weld for long hours!
It is also equipped with fiberglass jaws and handles. Of course, it’s lightweight and constructed for long life and dependability.
- Heat resistant
- Insulated for safety
- The cable is not included
In summary, KH528 400 AMP twist electrode holder is Far superior to clamps for improving your welds. Every stick welder should have this!
Best Welding Electrode Holders- My Parting Shots….
These three welding stingers are best considering their features, positive and negative aspects.
Based on your welding type and requirements, pick the best electrode holders from our list.
And carry out your welding task smoothly and remain safe!
FAQs about Welding Electrode Holder
Q. What are the causes of the overheating of a stinger?
Ans: Firstly, if you use the wrong size electrode in the holder, it might overheat.
Secondly, if the cables are too loose, or jaws are too loose or dirty, these may cause the stinger to overheat.
Intense heat may damage the holder. Never dip it into the water to cool it.
Q. What problems may arise if the welding machine is placed too close to each other or stacked together?
Ans: There might not be enough room for air circulation. Too little air circulation may result in overheating the machines.
Q. Is it safe to use a weld rod holder that has damaged insulation?
Ans: Damaged insulation of the stinger will increase the possibility of electric shock.
Q. How are the welding electrode holders rated?
Ans: These welding essentials are rated on their current carrying capacity.
